The Truvox ORBIS® is a powerful, versatile range of single-disc floor cleaning machines designed for professional cleaning and polishing of hard floors. Available in two cleaning diameters — 38cm (15") and 43cm (17") — the range offers a choice of 200rpm, 400rpm and dual-speed models to suit different floor care requirements.
Combining effective pad and brush pressure with a soft-start motor system, low vibration levels and an adjustable handle, the ORBIS® range delivers reliable performance with excellent operator comfort and manoeuvrability. Large transport wheels and a low motor profile make it easy to move between areas and clean beneath low furniture. With specialist options including a heavy-duty model for more aggressive cleaning and the dual-speed ORBIS® Duo for both cleaning and polishing, there is a model to suit a wide range of professional floor care applications.
Key Features
-
Choice of cleaning diameters: Available in 38cm (15") and 43cm (17") models to suit different floor areas and cleaning requirements.
-
Multiple speed options: Choose between 200rpm for standard cleaning, 400rpm for higher-speed applications, or the dual-speed ORBIS® Duo for added versatility.
-
Effective cleaning performance: High pad and brush pressure helps remove dirt and deliver consistent cleaning results.
-
Heavy-duty option: The 43cm ORBIS® 200 HD weighs 40kg, providing increased pad and brush pressure for more demanding cleaning tasks.
-
Ergonomic operation: Adjustable handle, soft-start motor and low vibration levels support comfortable operation.
-
Easy transportation: Large wheels make moving the machine between cleaning areas easier.
-
Access beneath furniture: The low motor height helps reach beneath low furniture and other obstacles.
-
Enhanced safety: High-visibility power cable and dead-man's safety switch support safer operation.
-
Versatile floor care: Suitable for cleaning and polishing hard floors, with a comprehensive range of accessories available for different applications.
-
Optional solution tank: A solution tank is available for wet scrubbing. The water tube required for the solution tank is fitted as standard on the standard 200rpm and Duo models only.

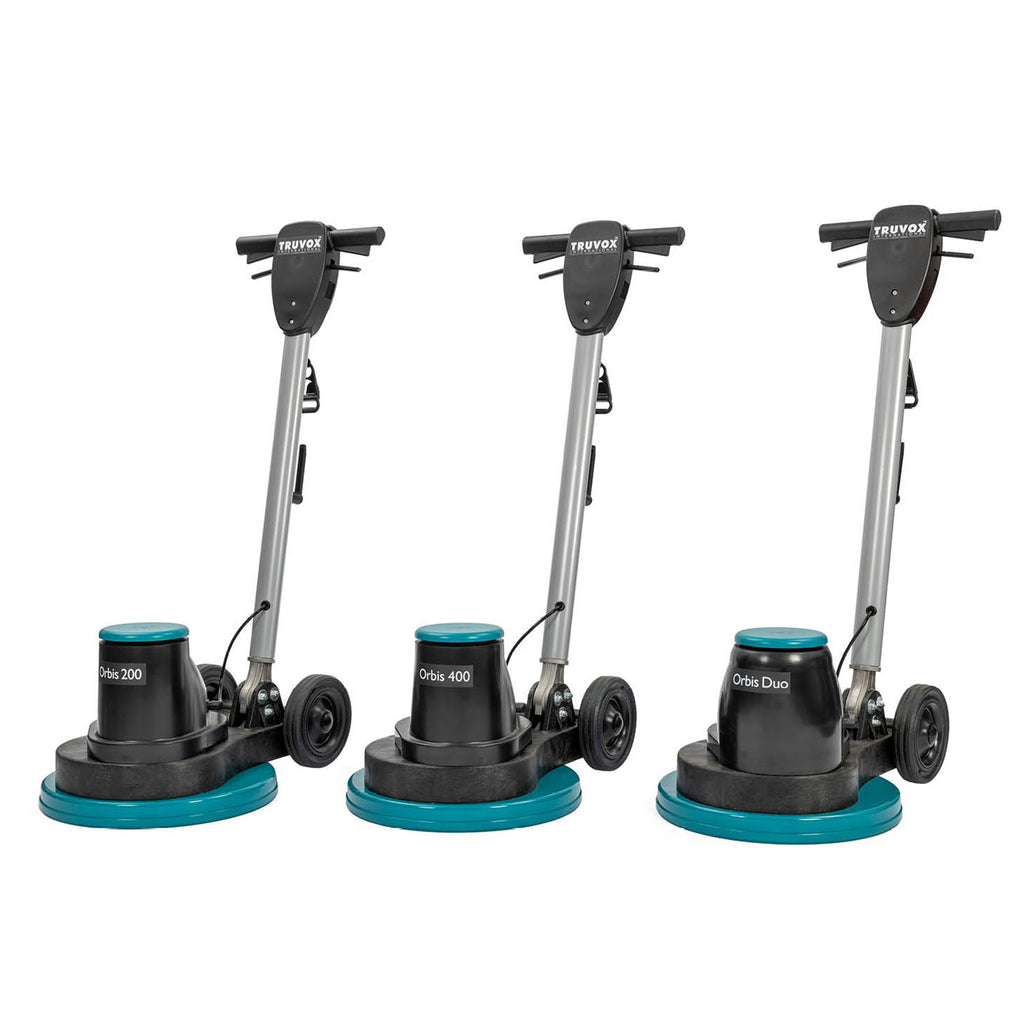

Available Models
| Model |
Cleaning diameter |
Speed |
Product code |

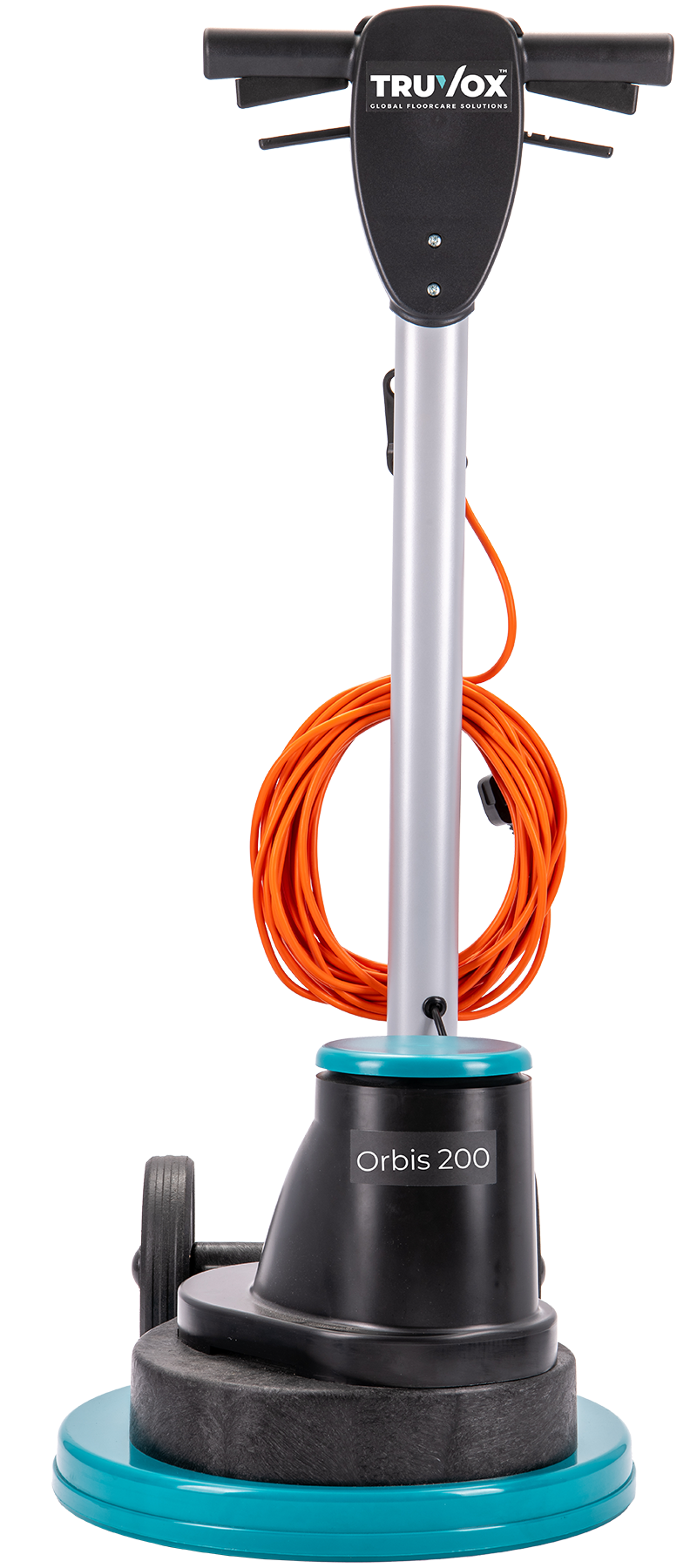

| ORBIS® 200 |
38cm (15") |
200rpm nominal |
OB38200 |

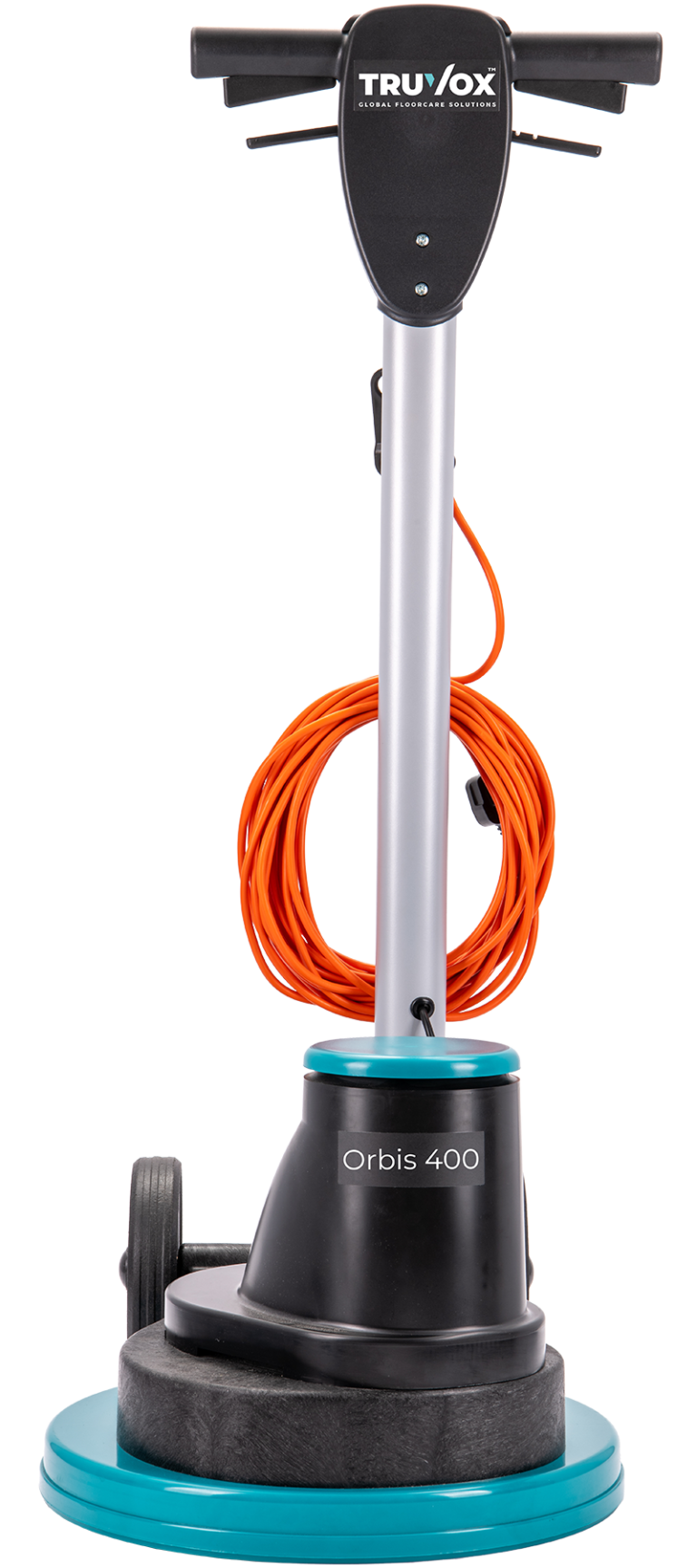

| ORBIS® 400 |
38cm (15") |
400rpm nominal |
OB38400 |
| ORBIS® 200 |
43cm (17") |
200rpm nominal |
OB45200 |
| ORBIS® 200 HD |
43cm (17") |
200rpm nominal, heavy duty |
OB45200/HD |
| ORBIS® 400 |
43cm (17") |
400rpm nominal |
OB45400 |

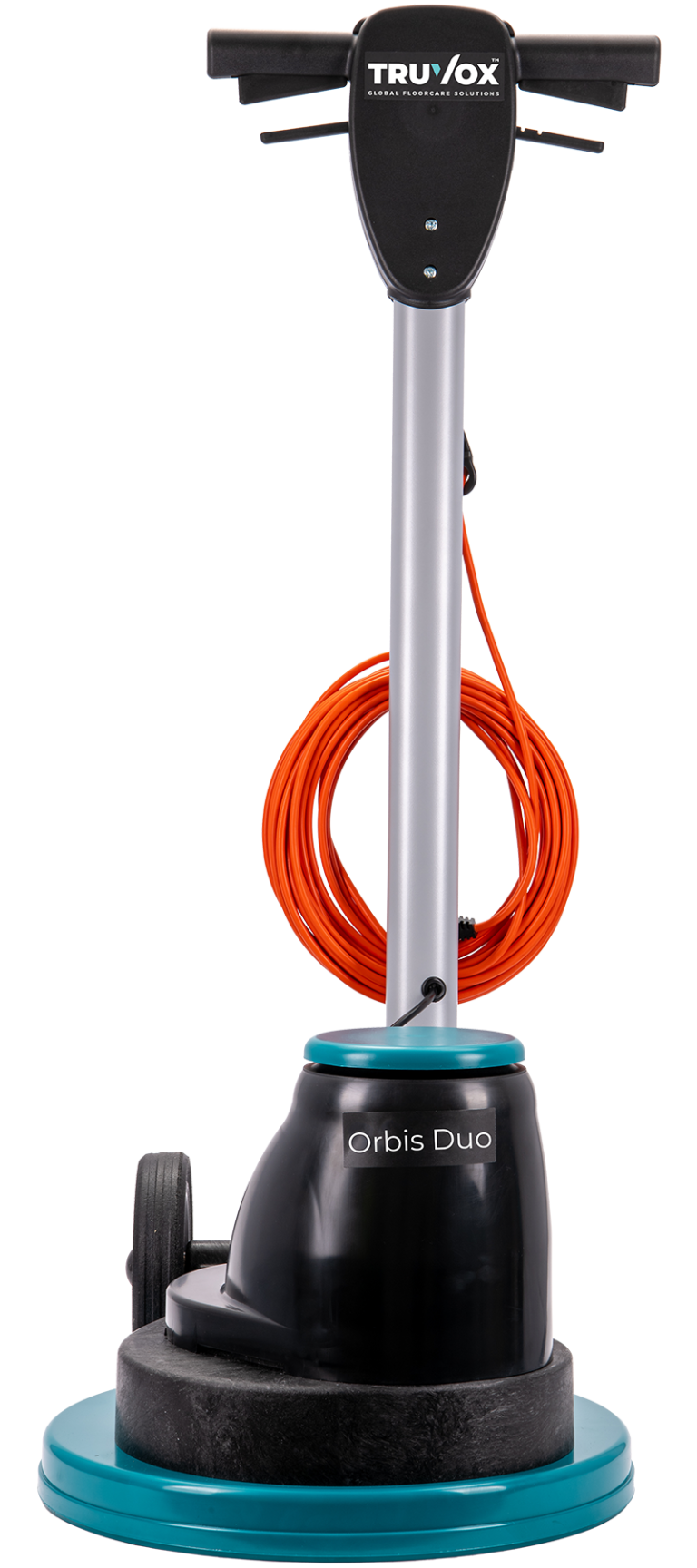

| ORBIS® Duo |
43cm (17") |
Dual speed: 200 / 400rpm |
OBLP452/400 |
All variants include the machine and drive board.
Technical Specifications
| Specification |
ORBIS® 200 38cm |
ORBIS® 400 38cm |
ORBIS® 200 43cm |
ORBIS® 200 HD 43cm |
ORBIS® 400 43cm |
ORBIS® Duo 43cm |
| Product code |
OB38200 |
OB38400 |
OB45200 |
OB45200/HD |
OB45400 |
OBLP452/400 |
| Voltage / Frequency |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
| Motor power |
1,100W |
1,100W |
1,100W |
1,100W |
1,100W |
1,100 / 550W |
| Pad / brush diameter |
38cm |
38cm |
43cm |
43cm |
43cm |
43cm |
| Pad / brush speed |
190rpm* |
380rpm* |
190rpm* |
190rpm* |
380rpm* |
154 / 309rpm* |
| Pad / brush pressure |
28g/cm² |
28g/cm² |
22g/cm² |
27g/cm² |
22g/cm² |
27g/cm² |
| Productivity rate |
420m²/h |
420m²/h |
475m²/h |
475m²/h |
475m²/h |
475m²/h |
| Sound pressure level |
53dB(A) |
53dB(A) |
53dB(A) |
53dB(A) |
53dB(A) |
53dB(A) |
| Dimensions (L × W × H) |
62 × 43 × 121cm |
62 × 43 × 121cm |
62 × 43 × 121cm |
62 × 43 × 121cm |
62 × 43 × 121cm |
62 × 43 × 121cm |
| Weight |
32kg |
32kg |
32kg |
40kg |
32kg |
36kg |
| Cable length |
15m |
15m |
15m |
15m |
15m |
15m |
The supplied technical specifications list actual pad/brush speeds of 190rpm and 380rpm for the nominal 200rpm and 400rpm models, and 154/309rpm for the Duo. These figures have been retained as provided.
Important Information
The water tube required for use with the optional solution tank is fitted as standard on the standard ORBIS® 200 and ORBIS® Duo models only. For other variants, please check the required components before ordering a solution tank.
