The Truvox ORBIS® ECO is a cost-effective, easy-to-use single-disc floor cleaning machine designed for professional contract cleaners. Supplied preassembled with the handle and drive board, it is ready to use, helping save setup time and reduce preparation costs. With a 43cm (17") cleaning diameter, powerful motor performance and ergonomic design, the ORBIS® ECO is ideal for cleaning and polishing hard floors across a variety of commercial environments.

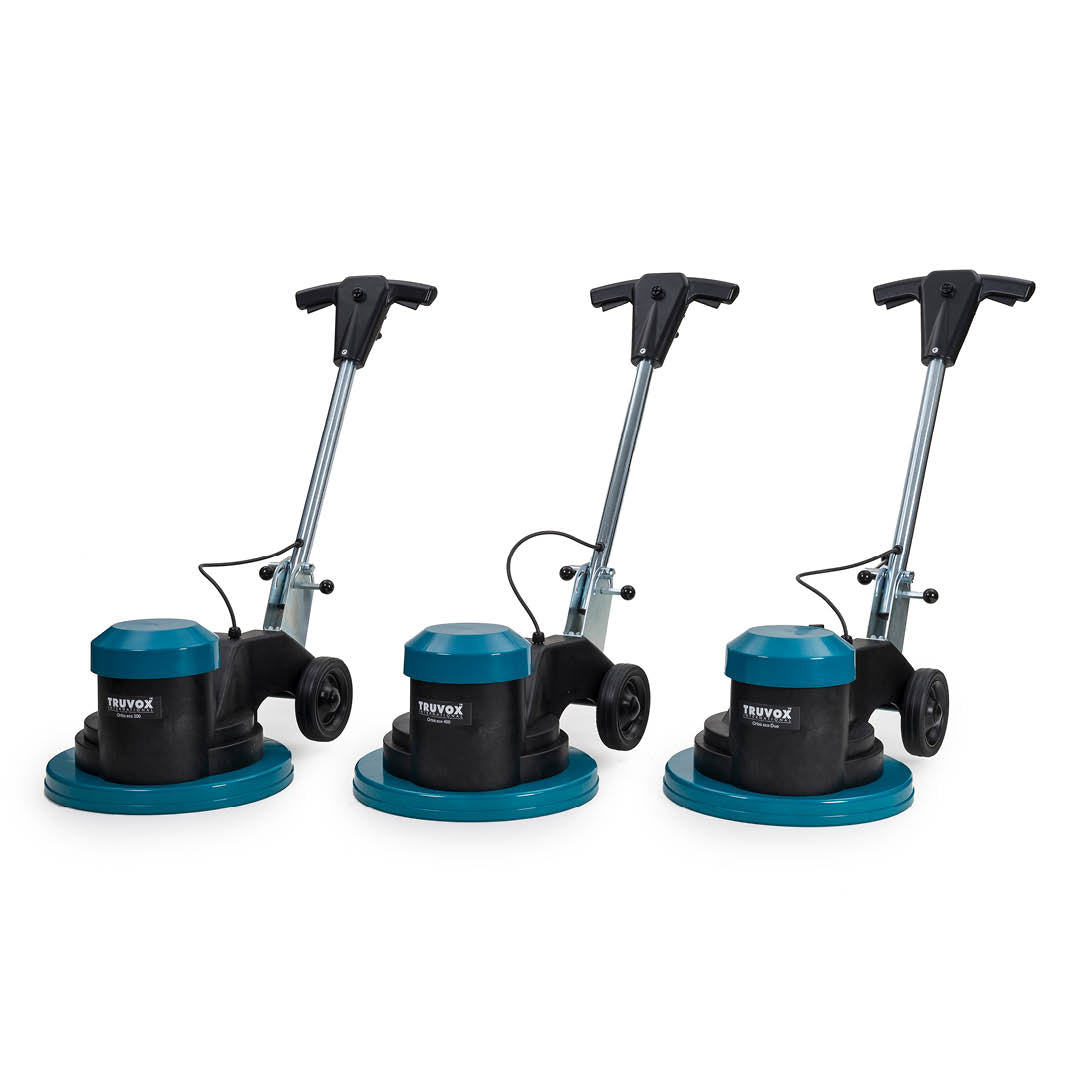

Available in three variants — ORBIS® ECO 200, ORBIS® ECO 400 and ORBIS® ECO Duo — the range offers standard-speed, high-speed and dual-speed options to meet different floor care requirements.
Key Features
-
Ready to use: Supplied preassembled with the handle and drive board, saving time and effort during setup.
-
Effective floor cleaning: The 43cm (17") cleaning diameter and high pad/brush pressure deliver effective cleaning performance.
-
Choice of speed options: Available in 200rpm, 400rpm and dual-speed models to suit different cleaning and polishing applications.
-
Ergonomic design: Adjustable handle height and low vibration levels help improve operator comfort.
-
Easy transportation: Folding handle and large rear wheels make the machine easier to move and store.
-
Enhanced safety: High-visibility power cable and dead-man’s safety switch support safer operation.
-
Versatile floor care: Suitable for cleaning and polishing hard floors, with a comprehensive range of accessories available.
-
Optional solution tank: Supports wet scrubbing when required. The water tube needed for the solution tank is fitted as standard on the standard 200rpm and Duo models only.
Available Models
| Model |
Speed |
Product code |
| ORBIS® ECO 200 |
200rpm nominal |
OB45200/ECO |
| ORBIS® ECO 400 |
400rpm nominal |
OB45400/ECO |
| ORBIS® ECO Duo |
Dual speed: 200 / 400rpm |
OBLP452/400/ECO |
All variants include the machine and drive board and are supplied with the handle preassembled.
Technical Specifications
| Specification |
ORBIS® ECO 200 |
ORBIS® ECO 400 |
ORBIS® ECO Duo |
| Product code |
OB45200/ECO |
OB45400/ECO |
OBLP452/400/ECO |
| Voltage / Frequency |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
220–240V / 50–60Hz |
| Motor power |
1,100W |
1,100W |
1,100 / 550W |
| Pad / brush diameter |
43cm (17") |
43cm (17") |
43cm (17") |
| Pad / brush speed |
190rpm* |
380rpm* |
154 / 309rpm* |
| Pad / brush pressure |
22g/cm² |
22g/cm² |
27g/cm² |
| Productivity rate |
475m²/h |
475m²/h |
475m²/h |
| Sound pressure level |
53dB(A) |
53dB(A) |
53dB(A) |
| Dimensions (L × W × H) |
62 × 43 × 121cm |
62 × 43 × 121cm |
62 × 43 × 121cm |
| Weight |
32kg |
32kg |
40kg |
| Cable length |
15m |
15m |
15m |
The supplied specifications list actual pad/brush speeds of 190rpm and 380rpm for the nominal 200rpm and 400rpm models, and 154/309rpm for the Duo. These figures have been retained as provided.
Important Information
The water tube required for use with the optional solution tank is fitted as standard on the ORBIS® ECO 200 and ORBIS® ECO Duo only. Check compatibility and any additional components required before ordering a solution tank for the ORBIS® ECO 400.
